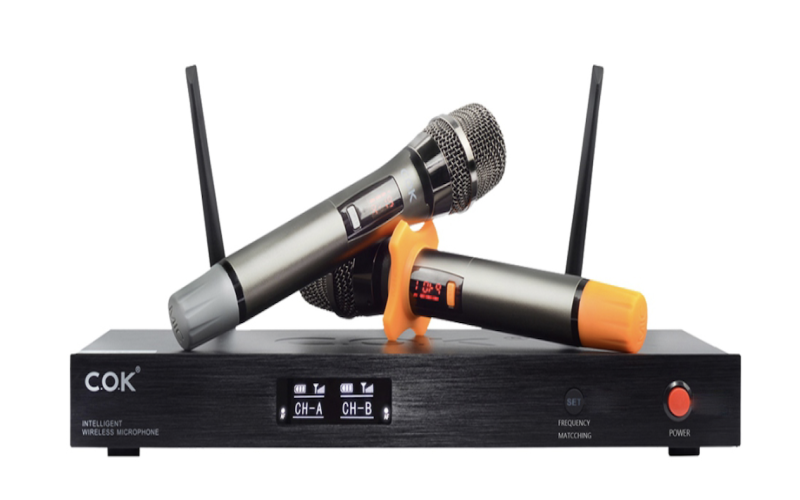

M-802
200 channels professional wireless microphone system
- Frequency Option： 470 -950MHz
- Product Frequency： 600 - 700MHz
- Total Channels： 200 channels
- Connection Distance： 60 meters
Transmitter Specification
Optional frequency range: 470 - 950MHz
Product frequency: 600 - 700MHz
Total number of channels: 200 channels
Modulation method: FM
Display type: LED
Pickup: Moving coil
Frequency response: 40Hz - 16KHz
Dynamic range: >100dB
Power supply: 2 x AA battery
Working current: <125mA
Receiver Specification
S/N Ratio: -97dB
Frequency stability: ±5KHz
Receiving mode: CPU control sending + pilotrecognition receiving
Mute method: Mute & Lock Loop Circuit
Display type: LED
Power supply: DC 5V/0.5A
Audio output impedance: 2.2KΩ
Audio output: 0 - 300mV
Connection distance: 60 meters
