M-9906

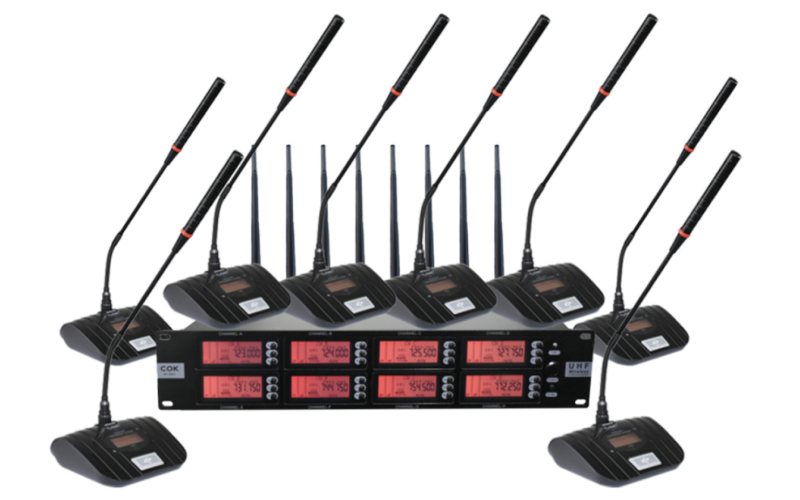

200 channels wirelessly conference microphone system

  • Frequency Option: 470 -950MHz
  • Product Frequency: 700 - 800MHz
  • Total Channels: 200 channels
  • Connection Distance: 60 meters

Transmitter Specification

Optional frequency range: 470 - 950MHz

Product frequency: 700 - 800MHz

Total number of channels: 200 channels

Modulation method: FM

Display type: LCD

Pickup: Capacitive

Frequency response: 40Hz - 16KHz

Dynamic range: >100dB

Power supply: 2 x AA battery

Working current: <100mA


Receiver Specification

S/N Ratio: -97dB

Frequency stability: ±5KHz

Receiving mode: CPU control sending + pilotrecognition receiving

Mute method: Mute & Lock Loop Circuit

Display type: LCD

Power supply: DC 8V/3A

Audio output impedance: 2.2KΩ

Audio output: 0 - 300mV

Connection distance: 60 meters
