M-9908

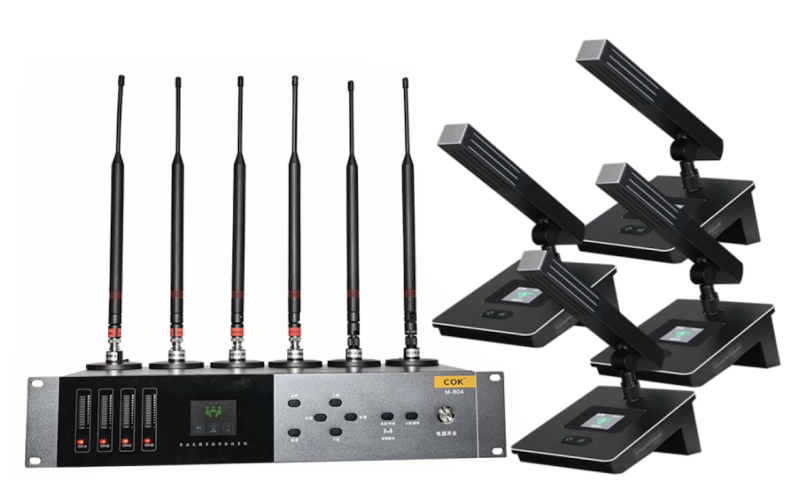

Wireless multifunction conference wireless microphone system

  • Frequency Option: 470 - 950MHz
  • Product Frequency: 600 - 700MHz
  • Total Channels: Group 25
  • Connection Distance: Over 60 meters

Transmitter Specification

Optional frequency range: 470 - 950MHz

Product frequency: 600 - 700MHz

Total number of channels: Group 25

Modulation method: FM

Display type: LCD

Pickup: Capacitive

Frequency response: 40Hz - 16KHz

Dynamic range: >100dB

Power supply: 2 x AA battery/ DC 5V

Working current: <200mA


Receiver Specification

S/N Ratio: -97dB

Frequency stability: ±5KHz

Receiving mode: CPU control sending + pilotrecognition receiving

Mute method: Mute & Lock Loop Circuit

Display type: LCD

Power supply: DC 8V/3A

Audio output impedance: 2.2KΩ

Audio output: 0 - 300mV

Connection distance: 60 meters
